Highlights



































Description

1pcs of SBT10 geiger counter

Details:

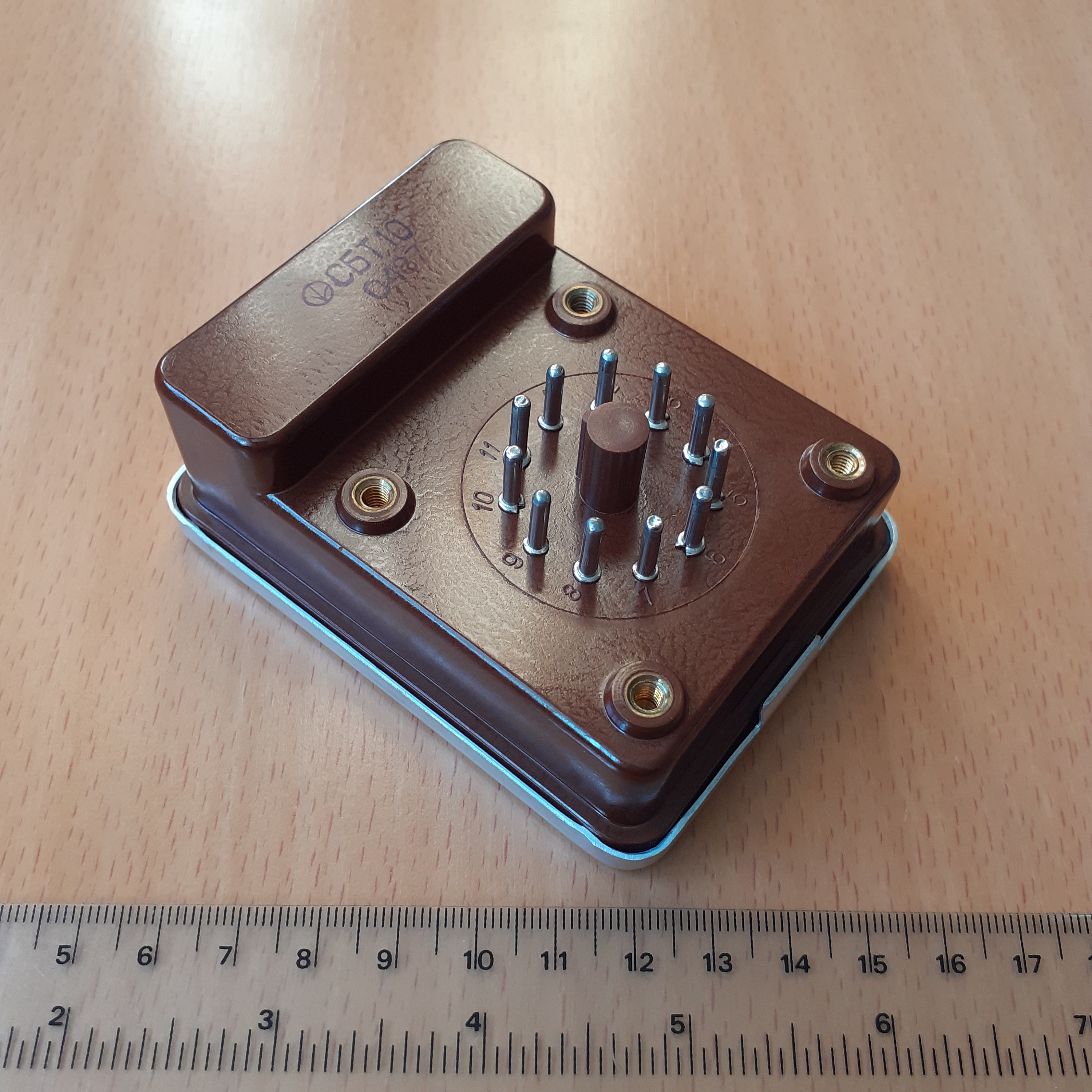

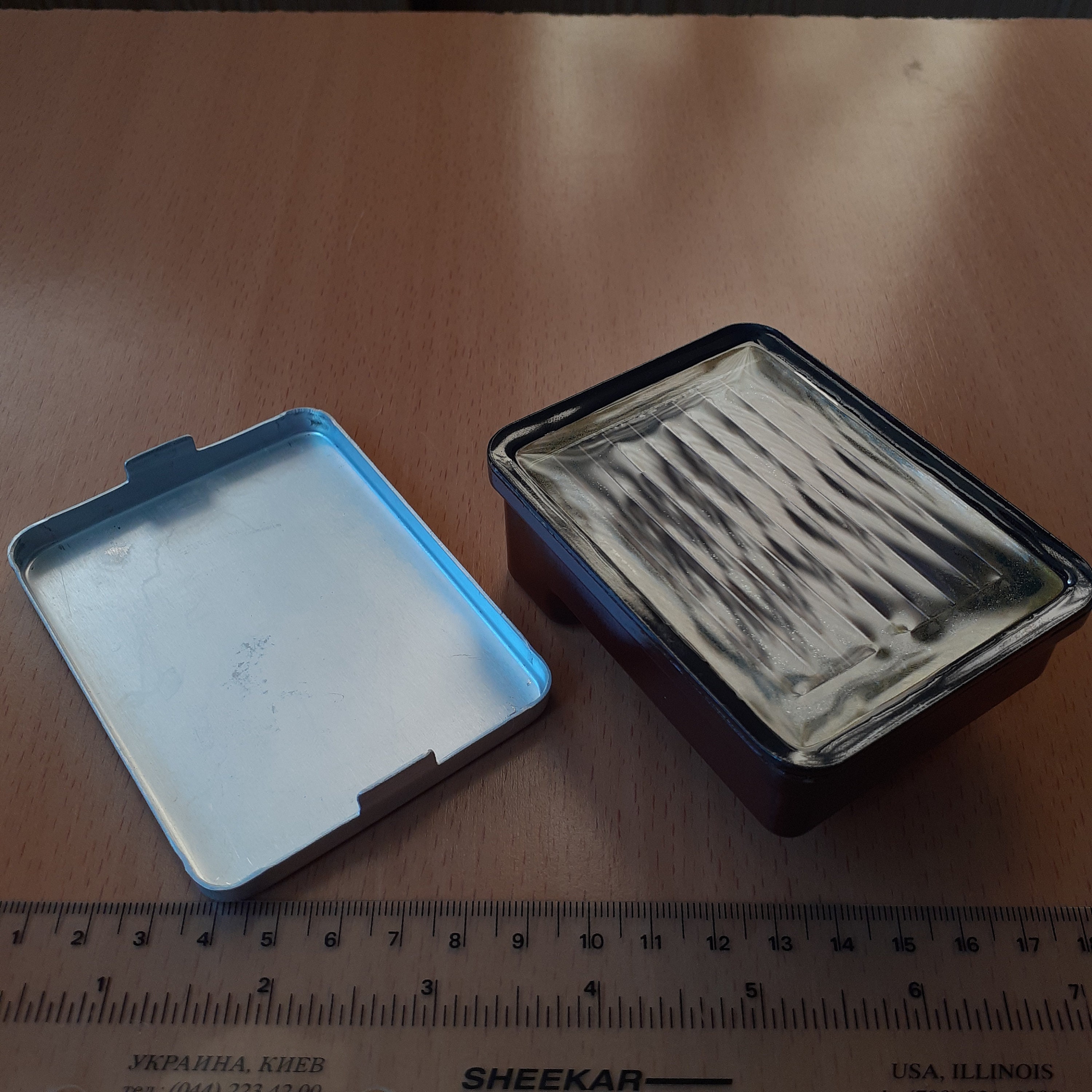

The SBT-10 is a Geiger-Muller tube containing 10 separated detectors, and a huge mica window which allows detection of u03b1, u03b2 (hard and soft) and u03b3 radiation. Basically it for soft beta radiation by datasheet. The STB-10 tube is designed to be operated in various PROFESSIONAL radiometric devices. It has very HIGH SENSITIVITY (efficiency of registration) in comparison to other counters.
Designed for registration of beta radiation with energy from 0.156 MeV

The counter has 10 similar anodes used in SBM-20. The overall measurement efficiency is at least 5 times greater than SBM-20.

GENERAL SPECIFICATIONS:
Voltage of start of counting: 260-320V
Operating Current each section: 0.3-1.5mkA
Recommended Operating Voltage: 390
Plateau Length / Inclination: 80V / 0.3% / V
Sensitivity from Cs137: 332.5-402.3 Pulses/mkR at Source = 4mkR/s
Pulse amplitude - 5V
Resistance of base = 10(in step 10)Ohm
Beta radiation detection efficiency - 35%
Own Background (Pulses / s): 2.17 at T=55+-3C
Working range (mkR / s): 0.003 - 20
Dimensions: 88mm, 68mm, 38mm

All photos are actual, so you buy what see on the photos.

Feel to ask any questions, and we will try to answer as soon as possible.

We ship with tracking number, by air mail on Etsy shipping address only (please, make sure it's correct!)
Our items are always packed carefully.
Please see other items!
