2x 6J32P (EF86, 6267) USSR SVETLANA PENTODE (NEW, NOS, old stock) Matched Pair

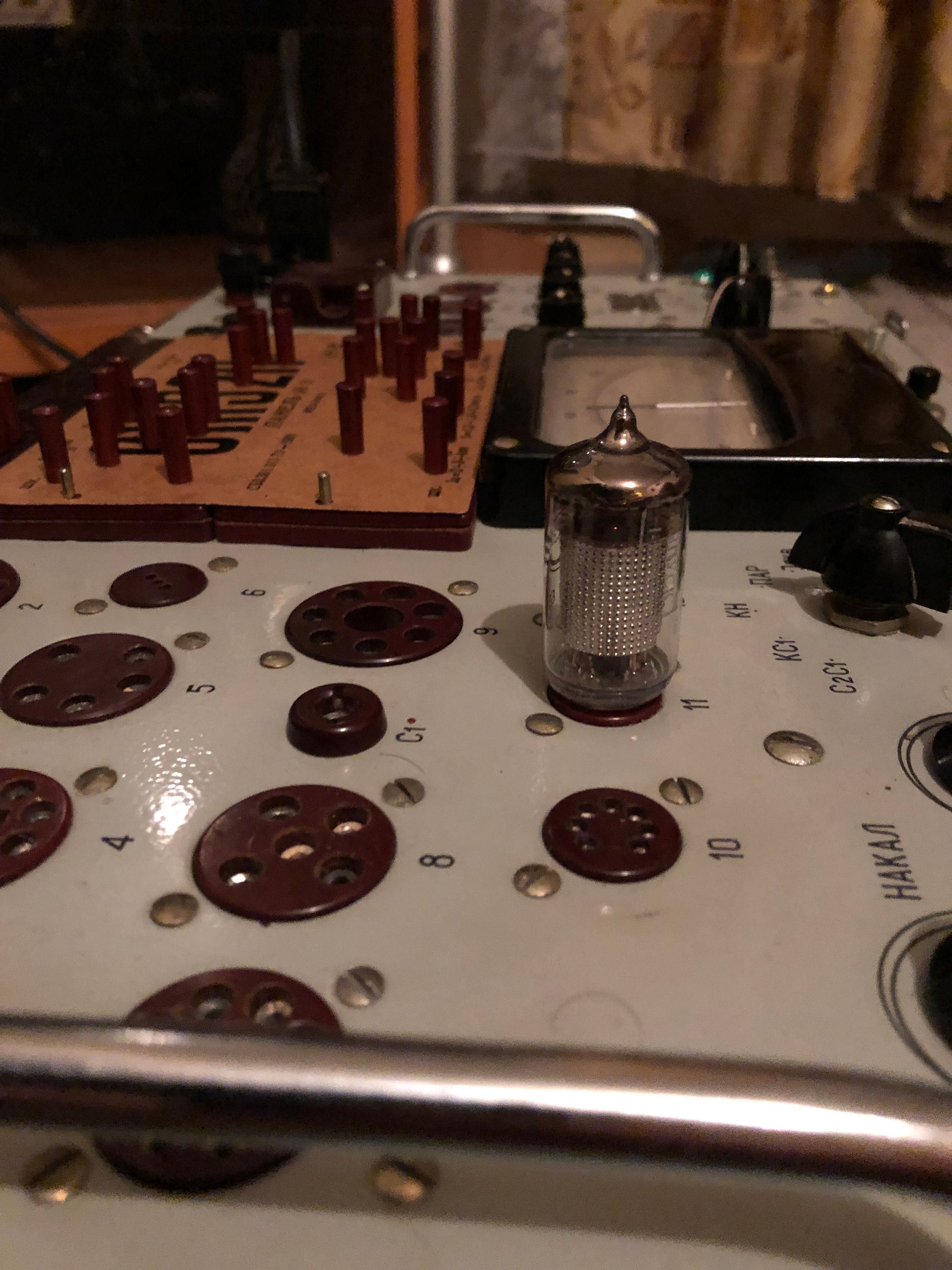

The tubes were tested on L3-3 tube-tester:

Input parameters:

Un=6.3 V; Uc1=-2V; Ua=250 V; Uc2=141 V

Output parameters:

1-st pair: Ia1=2.85 mA; S1=1.82 mA/V
Ia2=2.85 mA; S2=1.8 mA/V
2-nd pair: Ia1=3.0 mA; S1=1.92 mA/V
Ia2=3.0 mA; S2=1.88 mA/V
3-rd pair: Ia1=3.1 mA; S1=2.0 mA/V
Ia2=3.1 mA; S2=1.98 mA/V
4-th pair: Ia1=2.7 mA; S1=1.5 mA/V
Ia2=2.8 mA; S2=1.48 mA/V
5-th pair: Ia1=3.1 mA; S1=1.8 mA/V
Ia2=3.0 mA; S2=1.8 mA/V

Name - 6J32P
Art - Pentode
Kathodenart - oxid, indirekte Beheizung
Anwendungsfeld - Anwendung in Beschallungsanlagen
Umschlag - Glas, miniature
Masse 15 g
Heizspannung 6,3 V
Heizstrom 0,185-0,215 A
Anodenspannung 250 V
Anodenstrom - 0,002-0,004 A
Anodenleistungs 1 W
Grid2 Spannung 140 V.
Grid3 Spannung 0 V
Steilheit 1,3-2,3 mA / V
Microphnic Lu00e4rm 80 mV

Made in USSR.
